1200W Flexible solar panel kit complete

XINPUGUANG 1200W Flexible solar plate kit energy system solar panel kit complete solar panels Photovoltaic for 12V 24v battery

This product we set up inventory in Russia, Canada, Australia,Spain，Belgium. When you buy it， we will ship from your country that you don't need to consider customs clearance and duties and it will be fast delivery. However， tThis product we set up warehouse in Spain，When you buy it,if you are in EU,we will ship to your country that you don't need to consider customs clearance and duties and it will be fast delivery. However， the zip code in Spain that starts with 07,35, 38, 51, 52. the zip code in France 20001-20999,97100-97699,98400-98899. the zip code in Italy that starts with 22,23,47,69. the zip code in Denmark 100-999,3900-3999. the zip code in Portugal 9000-9900. Mont Athos in Greece. the zip code in Finland 2200-2299 Above zone for local shipping company,they are remote area.there is no logistics shipping to above zone from Spain.so we will ship from China to above zone.there sometime will need pay extra remote area fee. hope you can understand. The zip code in Russia that starts with 6，the delivery time is long ，maybe 30-45 days and some zip codes will only be sent to the post office instead of the shipping address，you need to go to the post office to pick up the parcel. Some areas of Canada are remote areas and need to add remote fees. When you need to add remote fees, we will send you an email. Please check the mail, thank you！

specifications

Maximum power(Pmax) 120W Output tolerance ± 3% Maximum system voltage 700V DC Open circuit voltage(Voc) 21.6V Short circuit current(Isc) 6.8 A Maximum power voltage(Vmp) 18V Maximum power current(Imp) 6.5A Cell efficiency 19.5% Operating temperature（NOCT） 45±2℃ Temperature range -40℃～+80℃ Number of cells 36pcs Weight 2200g Size 1170*540*3 mm Color Black Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Features:

a. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power. b. Using the latest component packaging technology, thinner, lighter, softer and longer life. c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight. d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion. e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design. f. Use photovoltaic special cable and PV connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play. g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

10pcs solar panel 1 Package include:

10 PCS solar panel

1200w solar kitl Package include:

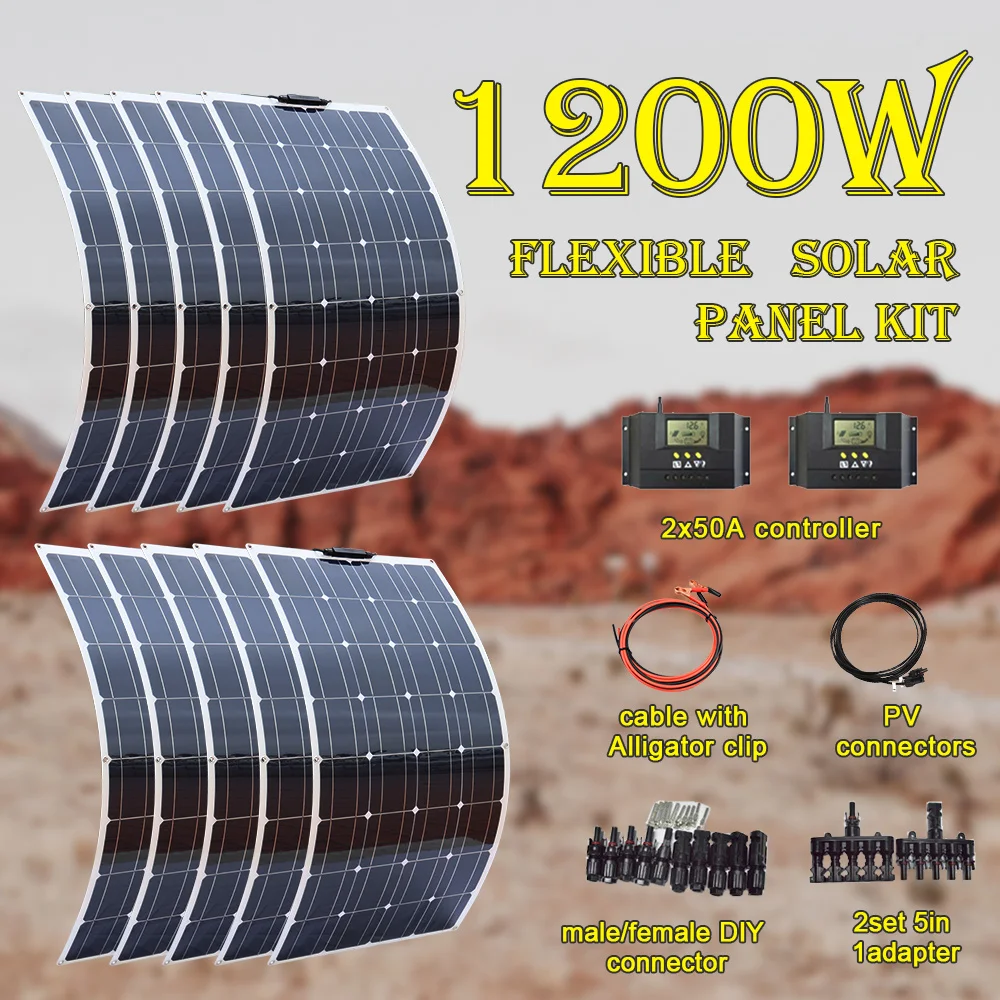

1200w solar kitl Package include: 10 pcs 120W flexible solar panel 2 pcs 50A controller 2 set 3m cable with pv connector 2 set 3m cable with Alligator clip 2 sets of 5 in and one out connector 10 sets of PV connectors

10pcs solar panel 2 Package include:

10 PCS solar panel

1200W solar panel 2 Package include:

1200w solar kitl Package include: 10 pcs 120W flexible solar panel 2 pcs 50A controller 2 set 3m cable with pv connector 2 set 3m cable with Alligator clip 2 sets of 5 in and one out connector 10 sets of PV connectors

Solar module products

a. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending; b. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use; c. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout; d. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range; e. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout; f. When used in series connection, the “+” of the previous component is connected to the “-” of the next component. The same panel cannot be directly connected to the positive and negative poles.

Solar panel connection installation method

When you use a 12V battery, use a parallel connection; when you use a 24V battery, use two serial connections. Please install the solar panel on a smooth surface with good sunlight and no shadow, and try not to install it on uneven areas. Solar panels can be fixed with glue or bolts.

Controller connection instructions

a Before connecting the solar panel, please connect the controller to the battery first. Connecting the solar panel without connecting the battery may cause the controller to burn out and fail to display. b After the controller is connected to the storage battery, connect the above-mentioned series or parallel solar panels to the controller through the transfer cable. c Finally, connect the required DC load to the load end of the controller. If the load does not work, press the third button of the controller. d According to the controller manual, adjust the parameters you need.

Precautions for installation of solar system

a When connecting this solar system, first connect the controller to the battery, and then connect the solar panel. Do not reverse the connection order. b Please install the controller in a well-ventilated area such as indoors or shadows to avoid exposure of components and prevent water from entering the controller. c The total power of the solar panel and DC load cannot be greater than the rated power of the controller (voltage × current), otherwise there may be a risk of burning the controller. d The inverter cannot be connected to the controller, but must be connected to the battery. e After installation, check whether all line connections are tight to avoid the danger of heat accumulation due to virtual connection. f The positive and negative poles of the solar panel in the same series connection cannot be short-circuited to prevent damage to the solar panel. g The positive and negative poles of the controller and battery should be checked clearly. Do not connect the positive and negative poles in reverse.

Notes for use:

a. This product must not come into contact with highly corrosive substances. b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use. c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout. d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range. e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning. f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product. g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller. h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller. i. The inverter can only be connected to the battery, not directly to the controller.
