600w Monocrystalline Solar Panel RV 12V Cell Flexible 100w 200w 300w Solar Panel Kit For Car /Boat/ Battery/ Hike /Camping
NO CARRIER SERVICE AREA:
●ES:The Canary Islands,Ceuta,Melilla,,Santa Cruz de Tenerife,Las Palmas
●FR:French overseas territories,Guadeloupe,French Guiana,Martinique,Réunion,Mayotte,Saint-Martin
●FI:The Aland Islands
●DE:The Island of Heligoland,The territory of Büsingen
●GR:Mount Athos
●IT:Livigno,Campione d'Italia,The Italian waters of Lake Lugano
Why Do You Need Flexible Solar Panels
●ADAPTABILITY
The main advantage of the bendable solar panel is its adaptability. Because it is flexible, it can be placed upon any given surface, no matter the surface's material. It can be placed on a curved roof, or a leveled platform when you want to harvest the sun's energy while you are out on the trail, or if you are traveling and camping off the grid!
●LIGHTWEIGHT
This best flexible solar panel for rv is usually lightweight, meaning it would not be a hassle to bring out on the road. This solar energy panel is easier to bring out for usage, as much as it is quite easy to store.
●DURABLE
Although it looks flimsy because of its flexibility, do not be fooled, the bendable solar panel is made to be durable! Being that it is used outside, it is manufactured with enough durability that is not easy to be damaged by rain, dust, sand, and other elements.
●WORTHY SUBSTITUTE
The flexible solar panel that is flexible is a worthy substitute to your traditional hard glass solar panel. It is way lighter, does not take up much space in usage and storage, and with less moving parts it is one less thing to worry about on the road!
●GREEN CHOICE
More and more owners opt for this because it is the green option. It harvests sunlight, works in silence, and does not add up to the pollutants that other traditional options utilize.
Panel Test
Solar Panel / Kit Packing List
solar panel packing list(solar panel only)
100w solar panel= 1pcs 100w 16v flexible solar panel
200w solar panel= 2pcs 100w 16v flexible solar panels
300w solar panel= 3pcs 100w 16v flexible solar panels
600w solar panel= 6pcs 100w 16v flexible solar panels
solar panel kit complete packing list(panels with controller,cables,etc)
100w solar panel kit complete packing list
▶100W 16V solar panel *1
▶118.11”extend cables *1
▶39.37”cable with alligator clips *1
▶10A 12V/24V solar charger regulator *1
200w solar panel kit complete packing list
▶100W 16V solar panel *2
▶39.37”cable with alligator clips *1

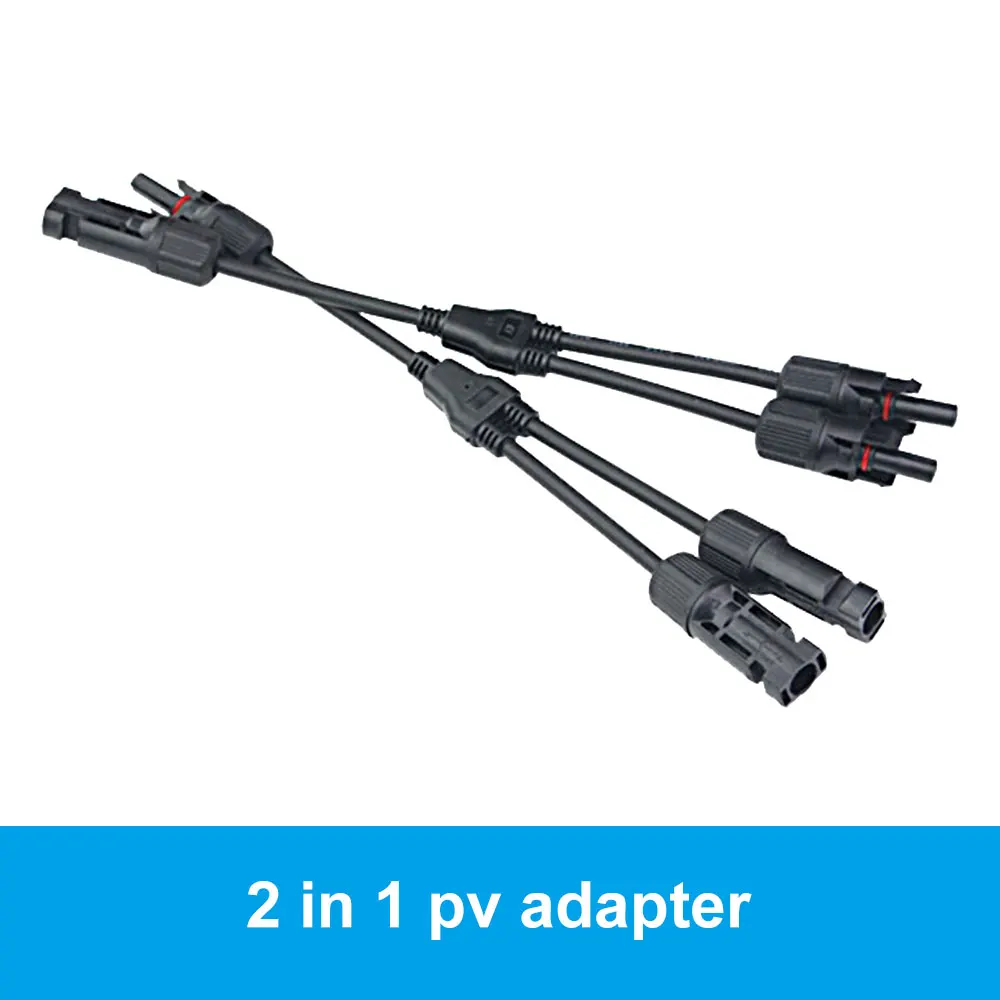

▶2-in-1 PV parallel adapter *1
▶118.11”extend cable *1
▶20A 12V/24V solar charger regulator *1
300w solar panel kit complete packing list
▶100W 16V solar panel *3
▶39.37”cable with alligator clips *1
▶3-in-1 PV adapter *1
▶118.11”extend cable *1
▶30A 12V/24V solar charger regulator *1
Specification:
Max Power 100W
Max Power voltage 16V
Max Power Current 6.25A
Open Circuit Voltage 19.2V
Short Circuit Current 6.875A
Maximum System Voltage 600V
Number of cells in Series 32 cells
Cell size 125X125mm
Weight 1.91kg/pcs
Panel Size 1050*530*2.5mm
How to connect flexible solar panels?
Connecting your panels in series increases the voltage level and controllers accept higher voltage input.Wiring panels in parallel increase current,does not increase voltage.
solar panel kit/system wiring
1.First wiring,connect the controller to the battery.
first connect cable with alligator clips to controller by screwdriver.Then connect alligator clips(black ) to the negative pole of the battery, next connect alligator clips (red) to the positive pole of the battery,pay attention to the positive and negative poles.After correct connection, the controller will display the voltage parameters of battery.
2.Second wiring, connect the flexible solar panels to the controller.
first connect extend cable to the controller by screwdriver.Then connect connect parallel adapter to the solar panel.If there is only one panel, please ignore this step.Next connect parallel adapter to extend cable.taking care when connecting & disconnecting the connector to avoid damage.Afetr right connection,the controller will display the solar panel is charging the battery.
3. The third step is to connect the DC load to the controller
4. Forth step, connect the invertor to the battery for AC output
How to care for and clean flexible solar panels?
Knowing how solar panel works are only half the battle. The other half lies in maintaining it in good working condition.
First, you are regular to check and look for stains and deposits on the solar modules. By using freshwater, you can remove these dirt stains, dust particles, even the occasional bird droppings, alongside other debris that stands to lessen the interaction of the sun and your panels. Fewer chances of sunlight reaching your panels will mean less energy that you can store and use later on. Using water and neutral soap, wipe the surface of the panels carefully and thoroughly.
After cleaning the equipment, thoroughly check for the wirings, the small parts, and the overall structural integrity of the equipment in order to gauge its actual condition.
