Solar System Complete 5KW 220v 120V Solar Panel 300WMPPT Hybrid Inverter 5000W 48VDC Gel Battery Home Solar System Off Grid
■ Over-loaded protection
■ With AC 220V Output
■ Pure Sine Wave inverter to convert DC output to AC
■ High efficiency, easy installation and reliable performance
■ 25years life span of solar panel
■ Economic and environment friendly
■ Low input and high return for customers
This system generates Max.Power: 25Kwh/Day based on 5hrs peak sunshine time
Solar Panel -10 Year Quality Warranty
Hybrid Inveter -2 Year Quality Warranty
Lead Acid Battery – 3 Year Quality Warranty
The Whole System For 1 Year
The System component and running the below appliance
Remarks :the bracket is without in 5kw system ,if you want the brackt please pay it seperately .
5kw system includes
Solar Panel 300w 30V 10Pcs
American Standard Hybrid Inverter 5000W 110V /220VAC 24V DC 1 Pc
Lead Acid Gel Sealed Battery 12V 100AH 4Pcs
PV Cable 4MM2 30M
MC4 Connector 2 Pairs
The UPS System .The inverter can connect grid net and generator ,too .When the battery has no energy on rainy day or night ,the inverter can shift to grid net or generator in 2 s
Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging
Solar Panel 300W Display
Hybrid Inverter 5000W 48V DC 220V AC Controller 80A
1. It adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.
2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.
4. Advanced MPPT technology with 99.9% efficiency.
5. Wide MPPT voltage range: 120-450V.
6. Individually on load capacity.
7. It comes with double lithium battery activation modes: mains and PV, and supports lead-acid battery and lithium battery access.
8. Comes with a LCD display and 3 LED indicators that can clearly indicate the status and data.
9. Rocker switch for AC output control.
Rated input voltage
Input voltage range
(170Vac~280Vac) ±2%；(90Vac-280Vac) ±2%
50Hz/ 60Hz (auto-sensing)
47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz);
Overload/short circuit protection
Conversion time (bypass and inverter)
10ms (Typical value)
AC reverse protection yes
Maximum bypass overload current
Output voltage waveform
Pure sine wave
Rated output power(VA)
Rated output power(W)
Rated output voltage (Vac)
Output voltage error
Output frequency range (Hz)
50Hz ± 0.3Hz/60Hz ± 0.3Hz
Load>150% ±10%: reporting error and turn off the output after 5 seconds;
Loaded motor capacity
Output short-circuit protection
Specification of bypass breaker
Rated battery input voltage
48V (minimum start voltage 44V)
Battery voltage range
40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm/turnoff voltage/overvoltage alarm/overvoltage restoration…settable LCD screen)
Power saving mode
Lead acid or lithium battery
Maximum charge current
Charge current error
Charge voltage range
Circuit breaker and blown fuse
Alarm and turn off charging after 1 minute
Maximum PV opencircuit voltage
PV operation voltage range
MPPT voltage range
Battery voltage range
Maximum output power
Charge current range of solar energy (settable)
Charge short-circuit protection
Reverse polarity protection
EMC authentication grade
Operation temperature range
-15°C to 55°C
Storage temperature range
-25°C ~ 60°C
5% to 95% (Conformal coating protection)
Forced air cooling, variable speed of fan
USB/RS485(Bluetooth/WiFi/GPRS)/Dry node control

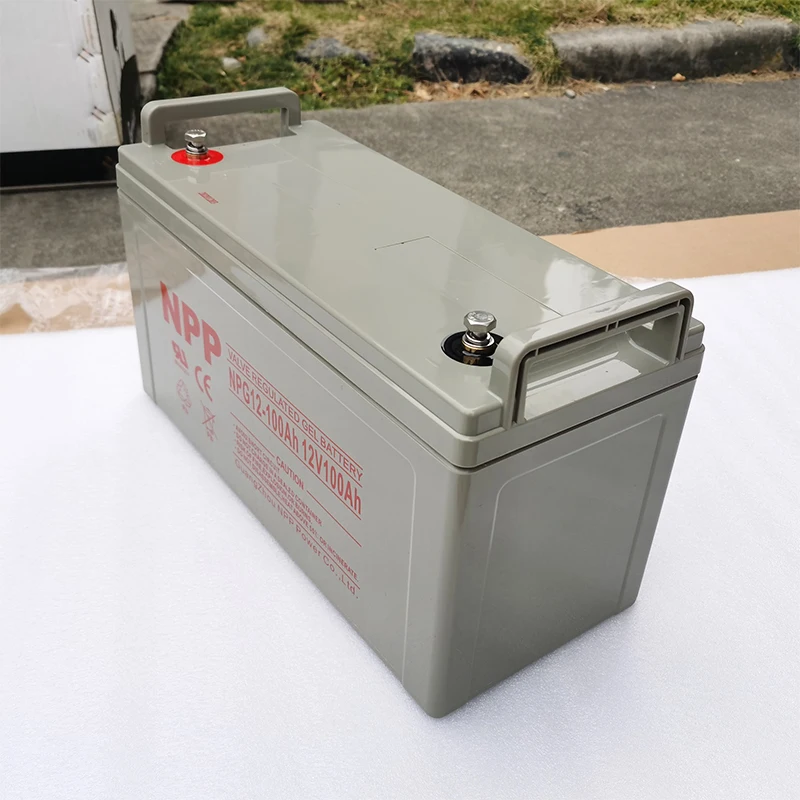

Lead Acid Gel Battery
What is delivery method ?
It is sea transportation to destination port .
When the buyer pay the order,the seller will find nearest port to buyer.and Await confirmation of buyer.
When the sola panel is on board,the seller will send loading bill,commercial invoice and packing list to buyer's e-mail for customs clearance.
When the solar panel reaches the port ,the buyer have to go to the port ,pay the destination port fee and tariff or duty and pick up the solar panel .
